3p07

The Hall

Camp Concert Hall is the central venue for the Modlin Center for the Arts' musical presentations, and will serve as the central location for the 2006 Third Practice festival. The hall is specifically designed for music, and is one of the premiere halls to play and record in on the east coast due to its sophisticated acoustical design.

The stage is 27' deep and 58' wide.

Festival Audio System Specifications

Reinforcement and Diffusion

The Third Practice sound reinforcement system is based around a 48-Channel, 8-buss Allen and Heath series 4000 console, and a total of 11 main drivers and 4 subs:

8 x Meyer CQ-1 cabinets
2 x Mackie SA 1521z cabinets
2 x Meyer USW-1P Subwoofer
2 x Renkus Heinz CE cabinets, (1 x 94T Mid/High and 2 x 12" sub each, driven by 1 x QSC MX3000 and 1 x QSC MX1500)
1 Center Cluster (1 x Renkus Heinz CE-125T Mid/High and Low, 1 x CEMH-125 balcony fill, driven by 1 RH P-2800 and one QSC MX1500).

The 2007 festival will also make use of the Cousins Studio Theatre in the Modlin Center for the Arts, with sound reinforcement provided by two additional Meyer CQ-1 cabinets.

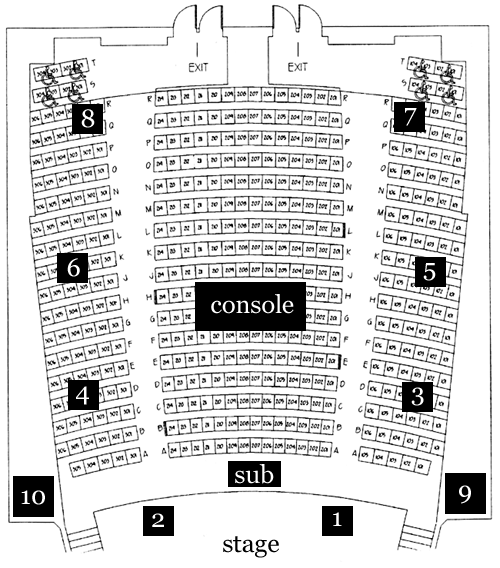

Click here for an approximate diagram of the speaker layout in Camp Concert Hall.

Signal Processing

2 Ashly Protea 4.24G 4-channel Graphic Digital EQ (chained to the main 8 busses)
1 Klark Teknik DN-3600 Programmable EQ
Alesis Quadraverb 2
3 x Yamaha SPX1000

Audio Playback

1 Tascam DA-45HR DAT
1 Sony CDP-D11 Front-Loading CD Player
1 MOTU 828mkII Firewire Digital Audio Interface
1 MOTU 2408 Digital Audio Interface
1 2.0ghz Dual Processor Macintosh G5 (MacOS X only)

Video Playback

1 Sony VPL-PX21 XGA Video/Data Projector
